Flexible Ceramic Tile-003
Binmao
Flexible Ceramic Tile-003

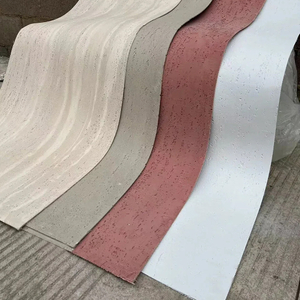

The UltraFlex Thin Porcelain Veneer Sheet redefines architectural surface design by combining porcelain performance with structural flexibility. Produced with advanced ceramic composites, these ultra-thin panels (3–5 mm) bend easily to fit curved walls, columns, and complex façades — without cracking or delaminating.
UltraFlex panels are lightweight yet highly durable, featuring porcelain-level hardness, UV and frost resistance, and minimal water absorption. Suitable for both indoor and outdoor use, they provide a true stone or concrete aesthetic while significantly reducing installation time, structural load, and transportation cost.
Typical applications include curved interior features, hotel and commercial façades, modular construction panels, and renovation projects where existing substrates remain in place. Available in a wide range of finishes — stone, concrete, marble, or custom textures — to meet the needs of architects and fabricators seeking a modern, sustainable cladding solution.
We supply material datasheets, installation guides, and color samples to support project specifications and large-scale procurement.
Product Advantage |
Ultra-thin porcelain composite, 3–5 mm thickness options
Bendable construction for curved or irregular surfaces
Lightweight (~3–6 kg/m²) — ideal for façade retrofits and modular builds
Hardwearing porcelain face — scratch and stain resistant
Weatherproof and UV-stable for outdoor performance
Fire-safe, non-combustible ceramic composition
Variety of finishes: natural stone, textured concrete, metallic, or wood-look
Compatible with standard tile adhesives or mechanical fixing
Curved architectural walls and building façades
Interior columns, feature walls, and display surfaces
Hotel lobbies, retail stores, and corporate spaces
Renovation or overlay projects without substrate removal
Modular panels for prefab construction and transportable units
Kitchen and bathroom wet-area decoration
| Item | Description |
|---|---|
| Material | Flexible porcelain composite |
| Thickness | 3 mm / 4 mm / 5 mm |
| Standard Sizes | 1200×600 mm / 2400×1200 mm / custom |
| Weight | ~3.0–6.0 kg/m² |
| Bend Radius | min. 200–300 mm (depending on thickness) |
| Surface Finishes | matte / stone / marble / concrete / metallic |
| Water Absorption | ≤0.5% |
| Fire Classification | Non-combustible ceramic (tested to EN/ASTM standards) |
| Service Temperature | -40°C to +90°C |
| Packaging | Protective foam interleave + export wooden crate |
(Replace values with factory-measured specs per SKU.)
Prepare Substrate: Ensure clean, level, and stable surface (cement board, concrete, primed metal, or old tile).
Adhesive Application: Use flexible polymer-modified adhesive or approved contact cement for curved surfaces.
Panel Positioning: Start from base; align joints accurately for aesthetic continuity.
Fixing: Ensure ≥80% adhesive coverage for outdoor use; optional mechanical fasteners for added strength.
Finishing: Fill joints with flexible grout/sealant; wipe surfaces clean after curing.
Curing: Allow full adhesive cure time before load exposure or surface cleaning.
Comprehensive Project Support: Samples, CAD drawings, and installation guidance.
Sustainability: Eco-friendly, low-emission production process.
Custom Finishes: Tailored textures, colors, and formats for design flexibility.
Efficiency: Reduced structural load and faster installation cycles.
Proven Quality: Each batch tested for flexibility, adhesion, and color consistency.
Global Logistics: Reliable export packaging and on-time delivery worldwide.
