Architectural Flexible Ceramic Cladding Panel

Product Description

The Architectural Flexible Porcelain Panel System integrates advanced ceramic engineering with architectural performance. Developed for contemporary façades, interior feature walls, and complex geometric surfaces, it combines the durability of porcelain with exceptional flexibility and low system weight.

Each panel is a multi-layered composite of high-density porcelain fused to a reinforced backing, achieving bend radii as low as 250 mm without compromising surface integrity. This enables seamless installation across curved façades, columns, or contoured interior walls — with significantly reduced substructure and fixing requirements compared to stone or rigid ceramic systems.

Engineered for exterior and interior use, the panels provide Class A fire performance, high UV and frost resistance, and <0.5% water absorption. Compatible with adhesive or mechanical fixing systems, they support both ventilated façade configurations and direct-bond retrofits.

Available in multiple formats, finishes, and custom textures (stone, concrete, metal, or architectural matte), the system offers architects full creative control and compliance with EN/ASTM façade material standards.

Comprehensive project documentation — technical datasheets, fire test reports, fixing details, and BIM files — is available upon request.

Features

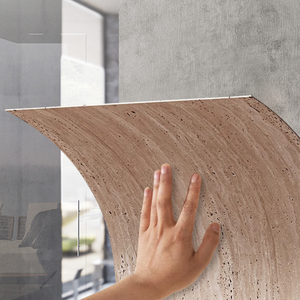

• Architectural Flexibility: Can bend and adapt to curved or irregular surfaces, enabling innovative facade design.

• Lightweight & Strong: 1/3 the weight of traditional ceramic tiles, reducing structural load and installation cost.

• Weather Resistance: Excellent UV, frost, and moisture resistance for long-term outdoor performance.

• Sustainable Materials: Produced with eco-friendly compounds and low carbon emissions.

• Fire & Impact Resistant: Meets international safety standards for building envelopes.

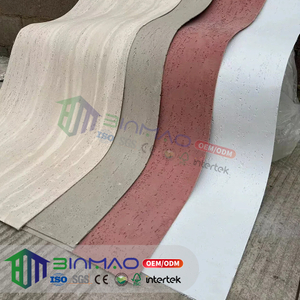

• Texture Variety: Available in stone, concrete, and brick textures for versatile design applications.

Applications

• Architectural facades for commercial and residential buildings

• Renovation of old building exteriors

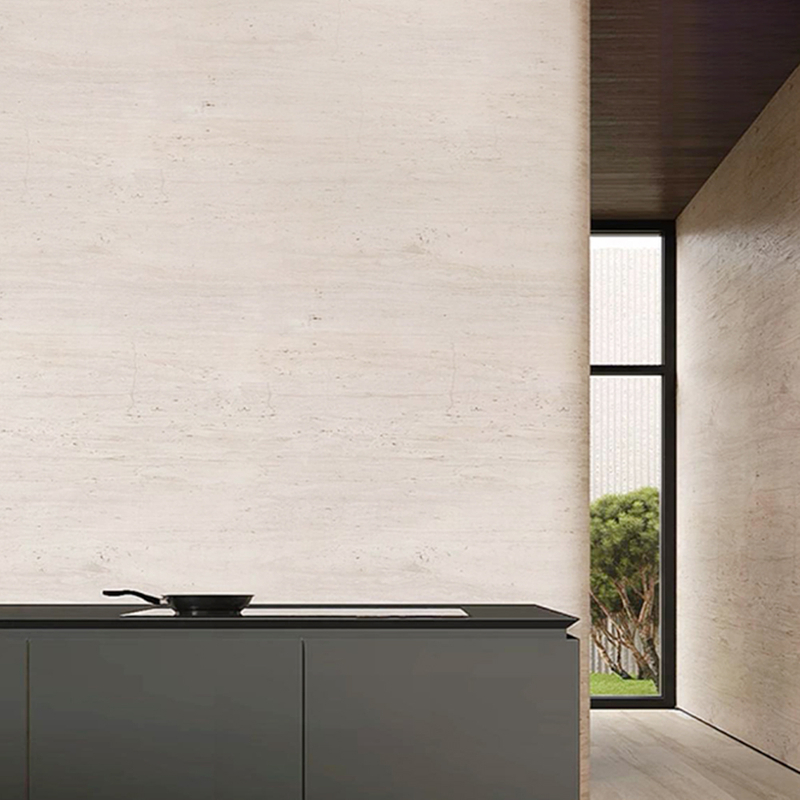

• Interior feature walls in hotels, galleries, and offices

• Curved surfaces or complex building envelopes

• Lightweight cladding systems for prefabricated structures

Specifications

Installation

1. Surface Preparation: Ensure substrate is clean, flat, and dry.

2. Adhesive Application: Use specialized polymer or flexible tile adhesive.

3. Panel Mounting: Apply pressure evenly and align joints with precision.

4. Joint Sealing: Use compatible silicone or flexible grout to ensure waterproofing.

5. Curing: Allow 24–48 hours before exposing to moisture or heavy use.

Why Choose Us

• Over 13 years of professional experience in wall cladding manufacturing

• OEM/ODM support for architects, contractors, and facade engineers

• Consistent quality control with ISO-certified production

• Wide range of customizable textures and finishes

• Global project support and technical consultation available
