How Wood Fibre Acoustic Panels Improve Speech Intelligibility in Spaces

Wood fibre acoustic panels significantly enhance speech intelligibility by optimizing room reverberation time, mitigating high-frequency Flutter Echoes, and selectively absorbing mid-frequency reflections within the key human vocal spectrum (250 Hz to 2000 Hz). By replacing hard reflective boundary surfaces with open-porous cellulosic fiber matrices, these acoustic panels eliminate destructive phase interference and late reflections, lowering the Speech Transmission Index (STI) degradation and raising Signal-to-Noise Ratios (SNR) in commercial and educational environments.

At a Glance

Understanding Wood Fibre Insulation

Wood fibre insulation represents a high-performance porous insulating material engineered from natural cellulosic wood fibres bonded into rigid or semi-rigid boards, offering exceptional acoustic damping, thermal mass capacity, and hygrothermal regulation properties.

Wood Fibre Insulation Performance Parameters

For commercial architects seeking durable, highly sustainable interior surface solutions that deliver structural integrity alongside acoustic performance, exploring modern composite wall panels provides a competitive balance between raw material efficiency and interior design aesthetics.

Wood Fiber Acoustic Panel Overview

Wood fiber acoustic panels are specialized interior acoustic wall and ceiling surfacing units manufactured by compressing wood and bamboo fibers with mineral binders or thermo-setting resins into porous decorative panels tailored for acoustic reflection control.

The engineering behind modern wood fiber acoustic panels blends classical material science with advanced architectural acoustics. Unlike standard gypsum board or smooth wooden millwork, which act as hard acoustic reflectors with absorption coefficients below 0.05, wood fiber acoustic panels exhibit an open-textured, visually distinctive surface structure composed of intertwined fibrous ribbons. This unique surface topology breaks up specular sound reflections, scattering incident sound waves across multiple angles—a phenomenon known as sound diffusion—while simultaneously absorbing energy within the porous substrate core.

In commercial manufacturing, raw timber or bamboo stalks are processed into fine strands, treated with environmentally benign flame retardants and anti-fungal formulations, and bound together under controlled thermal compression. The selection of the resin matrix determines whether the finished panel is suited for low-humidity interior offices or high-durability public transit hubs. Mineral-bound panels, utilizing cementitious or magnesite binders, provide elevated fire safety ratings and mechanical rigidity, whereas resin-bound or polymer-bound bamboo wood fiber panels offer lighter weight, enhanced flexibility, superior moisture resistance, and easier handling during field installation.

From an engineering design perspective, European client preferences have increasingly shifted toward fine-strand fiber textures (fiber width between 1.0 mm and 2.0 mm) with bevel-edged tongue-and-groove joint profiles. This configuration permits seamless pattern continuity across expansive wall elevations while concealing mechanical fasteners. Furthermore, the integration of acoustic backing materials, such as non-woven acoustic veils or high-density polyester fiber batts, behind the wood fiber panel significantly enhances the Noise Reduction Coefficient (NRC) across broader octave bands, especially in the critical speech communication frequencies between 500 Hz and 4000 Hz.

Technical Specifications of Wood Fiber Acoustic Panels

When specifying panels for large-scale B2B commercial projects, engineers must evaluate both acoustic properties and panel stability. Selecting a high-density bamboo wood fiber panel solution allows project managers to achieve refined visual aesthetics alongside verified fire retardancy and mechanical durability.

Enhancing Speech Intelligibility With Wood Fiber Acoustic Panels

Wood fiber acoustic panels enhance speech intelligibility by suppressing late sound reflections and reducing room reverberation time (RT60) within the fundamental frequency band of human speech, thereby boosting speech clarity and lowering masking interference.

Speech intelligibility measures the degree to which spoken message content can be clearly understood by human listeners within an acoustic enclosure. The quantitative metric widely adopted by acoustic engineers to evaluate this performance is the Speech Transmission Index (STI), which ranges on a scale from 0.0 (completely unintelligible) to 1.0 (perfect intelligibility). In an untreated room with hard parallel walls, sound waves bounce repeatedly between surfaces. This causes direct speech signals to become overlapped by late reflections—sound energy arriving more than 50 milliseconds after the direct sound signal. These late reflections act as acoustic noise, masking subsequent phonemes, particularly high-frequency consonant sounds (such as /t/, /k/, /s/, and /f/) that carry the primary semantic information of spoken human language.

By installing wood fiber acoustic panels on key boundary surfaces—most notably rear reflective walls, ceiling reflection zones, and side walls adjacent to speaker locations—the overall reverberation time (RT60) is effectively brought within the ideal acoustic target range of 0.6 to 0.9 seconds for educational lecture halls and 0.5 to 0.7 seconds for corporate conference rooms. The open cell structure of the wood fiber matrix converts the kinetic energy of the early-arriving sound waves into heat, preventing these reflections from cascading through the space as destructive background reverberation. Consequently, the signal-to-noise ratio (SNR) at the listener position increases substantially.

To illustrate this acoustic dynamic, consider the octave band absorption profile of wood fiber acoustic panels. Human speech fundamental frequencies typically reside between 85 Hz and 255 Hz, while formants and consonant harmonics extend up to 4000 Hz. Wood fiber panels engineered with air cavities behind them exhibit an absorption curve that aligns precisely with these speech frequencies. When incident sound waves within the 500 Hz to 2000 Hz band impact the panel, the acoustic impedance match between the air phase and the porous wood fiber matrix minimizes reflection amplitude, preventing acoustic muddying and maintaining distinct separation between rapid speech syllables.

Acoustic Performance Across Octave Frequencies (25mm Panel with 50mm Air Cavity)

Advantages of Wood Fiber Acoustic Panels

Wood fiber acoustic panels offer a compelling combination of high sound absorption efficiency, environmental sustainability, mechanical durability, fire safety compliance, and natural visual aesthetics compared to traditional synthetic acoustic treatments.

1. Exceptional Acoustic Damping and Reverberation Control

   The primary mechanical advantage of wood fiber panels is their balanced sound absorption profile. Unlike non-porous wood paneling or hard plasterboard, wood fiber panels achieve Noise Reduction Coefficients (NRC) exceeding 0.80 when installed over an air cavity filled with insulation. This acoustic dampening prevents standing waves, eliminates flutter echoes between parallel walls, and maintains a balanced acoustic environment suited for clear speech communication.

2. Sustainable Raw Material Sourced Profile

   In modern sustainable architecture, material transparency and carbon footprint metrics play a major role in specification decisions. Wood fiber acoustic panels utilize renewable timber waste, forest thinnings, or rapidly renewable bamboo fibers. Bonded with mineral or bio-based binders, these panels sequester atmospheric carbon throughout their operational lifecycle, assisting project teams in achieving LEED, BREEAM, and WELL building certifications while eliminating toxic VOC off-gassing into indoor spaces.

3. High Mechanical Impact Resistance and Durability

   In high-traffic commercial environments such as school hallways, gymnasiums, and public auditoriums, standard soft acoustic foams or mineral wool panels suffer from physical denting, tearing, and surface degradation. Wood fiber composite panels possess high flexural strength and surface compression resistance, allowing them to withstand mechanical impacts without structural cracking or visual damage.

4. Thermal Insulation Mass and Microclimate Humidity Buffering

   Beyond acoustic management, the intrinsic cellulosic matrix of wood fiber offers a thermal conductivity rating (λ) between 0.040 W/(m·K) and 0.050 W/(m·K), contributing to the building envelope thermal mass. Furthermore, cellulosic fibers possess hygroscopic properties, allowing panels to absorb excess moisture during periods of elevated indoor humidity and desorb it gradually when the ambient air dries, stabilizing indoor hygrothermal comfort.

5. Fire Retardancy and Code Compliance

   Engineered wood fiber panels are treated during binder integration with non-toxic flame retardants such as ammonium polyphosphate or aluminum trihydrate, achieving Class B-s1, d0 reaction-to-fire ratings under European EN 13501-1 standards. This ensures low flame spread and minimal smoke toxicity during thermal exposure, meeting stringent building code requirements for commercial assembly spaces.

Material Comparison: Wood Fiber vs. Mineral Wool vs. Acoustic Foam

Architects looking to replace fragile foam or plain plasterboard with durable surface solutions should evaluate complete commercial wall panel offerings.

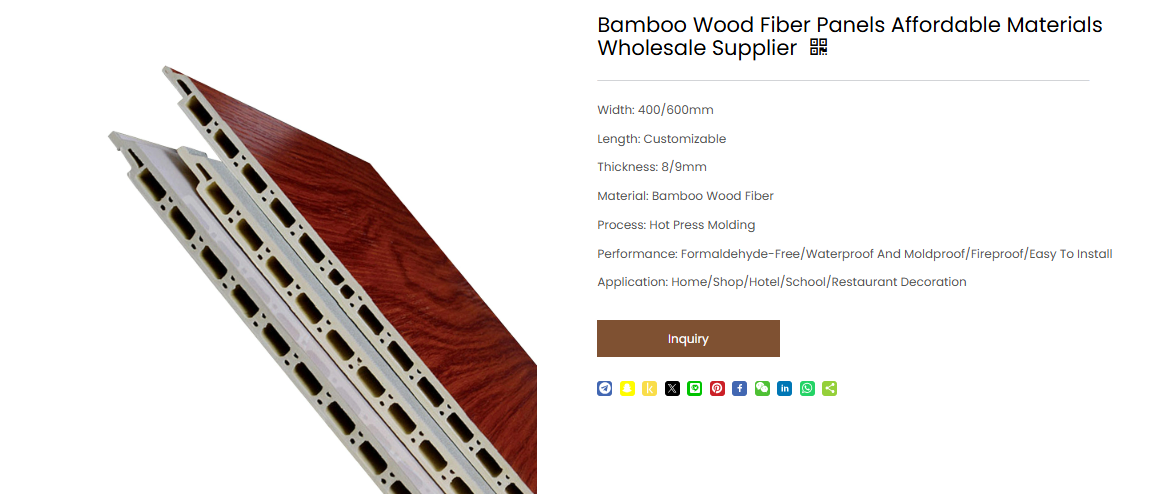

⭐Click to examine commercial bamboo wood fiber acoustic wall panel solutions:

https://www.binmaodecor.com/Bamboo-Wood-Fiber-Panels-Affordable-Materials-Wholesale-Supplier-pd529436158.html

Wood Fiber Acoustic Panel Applications

Wood fiber acoustic panels are extensively applied across commercial, educational, corporate, and public infrastructure facilities where sound clarity, speech intelligibility, and interior aesthetic design are essential requirements.

1. Educational Lecture Halls and Classroom Environments

   In educational facilities, low speech intelligibility directly impairs student learning comprehension and increases vocal strain for teachers. Installing wood fiber acoustic panels across the rear wall and perimeter ceiling zones absorbs secondary reflections that would otherwise mask teacher speech. Lowering background noise levels creates an acoustic environment where speech can be understood clearly from every seat in the room.

2. Corporate Conference Rooms and Video Conferencing Suites

   Modern corporate meeting rooms frequently feature glass partitions and hard table surfaces. In video conferencing environments, ambient room reverberation gets picked up by sensitive microphone arrays, resulting in hollow, echo-prone audio for remote participants. Surfacing perimeter walls with wood fiber panels dampens flutter echo, stabilizes room STI ratings above 0.75, and optimizes both local and remote communication clarity.

3. Auditoriums, Performing Arts Centers, and Multipurpose Spaces

   In large-capacity assembly spaces, controlling echo and reverberation energy requires careful placement of sound-absorbing and sound-diffusing panels. Wood fiber acoustic panels installed along side and rear boundaries prevent echo returns to the stage while absorbing excessive mid-band acoustic energy generated by large audiences, maintaining clear acoustics for both amplified speech and unamplified acoustic presentations.

4. Open-Plan Office Interiors and Commercial Call Centers

   Open-plan office spaces are inherently prone to speech distraction, as vocal conversations travel across cubicle partitions and bounce off concrete structural ceilings. Integrating wood fiber acoustic wall cladding and suspended acoustic baffles breaks up horizontal sound propagation routes, creating localized acoustic zones, lowering ambient background noise, and improving speech privacy between workstation pods.

5. Public Transit Terminals, Healthcare Facilities, and Hospitality Venues

   In high-traffic public spaces such as airport concourses, train station halls, hospital waiting areas, and hotel lobbies, clear public address (PA) announcements are vital for safety and operational efficiency. The installation of impact-resistant, fire-rated wood fiber acoustic panels on elevated ceiling surfaces reduces acoustic reverberation times, ensuring emergency announcements and general flight calls remain crisp and legible above ambient crowd noise.

Architectural Application Guidelines & Target Acoustic Metrics

Considerations and Limits

While wood fiber acoustic panels offer outstanding sound absorption and speech intelligibility performance, engineers must account for low-frequency absorption limits, proper air cavity sizing, ambient moisture exposure, and correct installation mounting systems.

Although porous wood fiber panels excel at absorbing mid-to-high frequency sound waves (500 Hz to 4000 Hz), their absorption efficiency drops sharply at low frequencies below 125 Hz when mounted directly flush against a hard structural wall. According to acoustic wave theory, maximum acoustic particle velocity occurs at a distance equal to one-quarter wavelength (λ/4) from a rigid boundary. Because a 100 Hz sound wave has a wavelength of approximately 3.4 meters, a thin panel mounted directly against a wall sits in a zone of high acoustic pressure but low particle velocity, rendering porous friction absorption ineffective for low-frequency room modes or HVAC bass rumble.

To overcome this low-frequency limitation, acoustic design engineers must specify an air cavity behind the wood fiber acoustic panels, typically ranging from 50 mm to 100 mm in depth. Filling this air cavity with high-density mineral wool or polyester acoustic insulation shifts the quarter-wavelength absorption point to much lower frequencies, significantly flattening the overall acoustic absorption response curve across the entire audible spectrum.

Furthermore, environmental conditions must be carefully managed. While polymer-bound and bamboo-wood composite panels exhibit strong moisture resistance, natural mineral-bound or raw softwood fiber panels can undergo subtle hygroscopic dimensional movement if exposed to continuous liquid water or relative humidity levels exceeding 85% for prolonged periods. Adequate site acclimation—storing unboxed panels in the final installation space for 48 to 72 hours prior to mounting—is essential to balance panel equilibrium moisture content (EMC) and prevent joint buckling or surface gaps.

Finally, installation methods must be selected based on structural substrates. Direct mechanical fastening using zinc-coated steel screws or concealed z-clip mounting hardware is strongly recommended for wall applications to ensure structural stability under mechanical shear loads. Utilizing adhesive bonding alone without mechanical backup can lead to bond failure over time, particularly in spaces subject to thermal expansion cycles or continuous acoustic vibration.

Technical Limitations and Mitigation Strategies
